Fleet Operations Customer Contract Import

Introduction

This will import Fleet Operations vehicles in to ViSN, and allocate vehicles to sub-customers using the Customer Account Number field

download sample Fleet Operations customer contract import file.

File format

Comma Separated Values - *.csv
Encoding - UTF-8

Fleet Operations Customer Customers Import

Sr. no.	Fields in Fleet Operations File	Map to ViSN customer-contract	Description	Max length	Rules / Validation	Mandatory	Example
A	Registration	REGISTRATION	REGISTRATION	10	A-Z & 0-9	Y	AM10JKL
B	VIN	VIN	VIN	20	[A-Z] [0-9] and special characters - Standard VIN Format	N	WVWZZZ1KZAM10JKL1
C	Asset Number	ASSET NUMBER	ASSET NUMBER	10	A-Z & 0-9	N	ASSET003
D	Registration Date	REGISTRATION DATE	REGISTRATION DATE	10	[0-9] ddmmyyyy	N	15062023
E	Make	MAKE	MAKE	50	A-Z & 0-9 and Special Characters	N	Volkswagen
F	Model	MODEL	MODEL	50	A-Z & 0-9 and Special Characters	N	Golf
G	Specification	Specification	String	100	A-Z & 0-9, spaces, dash, hyphen and special characters	N	Match
H	Fuel Type	Fuel Type	Fuel Type	50	All Characters and Special Characters	N	Diesel
I	Vehicle Type	Vehicle Type	Vehicle Type	10	A-Z & 0-9 and special characters	Y	Car
J	Contract Start Date	CONTRACT START DATE	CONTRACT START DATE	10	[0-9] ddmmyyyy	N	15062023
K	Contract End Date	CONTRACT END DATE	CONTRACT END DATE	10	[0-9] ddmmyyyy	N	15062026
L	Contract Mileage Term	MILEAGE	Mileage	6	0-9	N	20000
M	CAPID	CAP ID	CAP ID	20	[A-Z] [0-9] and Special Characters	N	CAPID003
N	Argic Code	Argic Code	String	20	A-Z & 0-9, spaces and special characters	N	ARGIC03
O	Colour	COLOUR	COLOUR	200	A-Z & 0-9 and Special Characters	N	Grey
P	MOT Due Date	MOT DUE DATE	MOT DUE DATE	10	[0-9] ddmmyyyy	N	15062027
Q	Maintained	Maintained	Managed / non-managed	N/A	true / false	Y	true
R	Vehicle Product	Vehicle Product	Fleet Managed	50	A-Z & 0-9 and Special Characters	N	Fleet Managed
S	Service Schedule	Service Schedule	Service Schedule	8	[0-9]	N	24000
T	Warranty Parameter Months	Warranty Parameter Months	Number	3	[0-9]	N	48
U	Warranty Parameter Mileage	WARRANTY MILEAGE	WARRANTY MILEAGE	6	[0-9]	N	85000
V	Fridge	Fridge	String	1	Y or N	N	N
W	Tail Lift	Tail Lift	String	1	Y or N	N	N
X	Crane	Crane	String	1	Y or N	N	N
Y	Customer Name	Customer Name	String	100	a-zA-Z0-9, -, ' and Special Characters	N	Ford cust
Z	Customer Account Number	Customer Account Number	String	50	A-Z, 0-9 and All Special Characters	N	00123456789
AA	VAT Number	VAT Number	VAT Number	15	A-Z, 0-9 and All Special Characters	N	GB987654321
AB	Address 1	Building Number	Building Number	50	A-Z, 0-9 and All Special Characters	N	45
AC	Address 2	Street Name	Street Name	100	A-Z, 0-9 and All Special Characters	N	Church Road
AD	Address 3	District	District	50	A-Z, 0-9 and All Special Characters	N	North
AE	Address 4	Town	Town	100	A-Z, 0-9 and All Special Characters	N	Manchester
AF	Address 5	County	County	50	A-Z, 0-9 and All Special Characters	N	Greater Manchester
AG	Postcode	Postcode	Postcode	15	[a-zA-Z0-9]	N	M11AA
AH	SMR	SMR	String	1	Y or N	N	Y
AI	Tyres	Tyres	String	1	Y or N	N	Y
AJ	Glass	Glass	String	1	Y or N	N	Y
AK	Accident Management	Accident Management	String	1	Y or N	N	N
AL	Breakdown	Breakdown	String	1	Y or N	N	Y
AM	Insurance	Insurance	String	1	Y or N	N	N
AN	Rental	Rental	String	1	Y or N	N	N
AO	Cost Centre	Cost Centre	String	100	A-Z, a-z, 0-9 and permitted special characters	N	CC003
AP	Invoice Centre	Invoice Centre	String	15	A-Z, a-z, 0-9 and permitted special characters	N	INV003
AQ	Customer Contact	Contact Number	Contact Number	15	0-9	N	07987654321
AR	Customer Number	Customer Number	String	15	0-9	N	00123456789
AS	Customer Email	Customer Email	String	50	Standard Email Format	N	ops@example.com
AT	Customer Policy Notes	Customer Policy Notes	String	700	A-Z & 0-9, spaces, dash, hyphen and special characters	N	Policy notes text
AU	Customer Recharge Limit	Customer Recharge Limit	Number	—	[0-9]	N	300
AV	Customer Referral Limit	Customer Referral Limit	Number	—	[0-9]	N	600
AW	Driver Firstname	Driver first name	String	30	A-Z & 0-9 and Special Characters	N	Simon
AX	Driver Lastname	Driver Last name	String	30	A-Z & 0-9 and Special Characters	N	Rouse
AY	Driver Email	Driver Email	String	50	Standard Email Format	N	simon.d@example.com
AZ	Driver Number	Driver Number	Number	11	[0-9] Standard Mobile Phone Format	N	07987654321
BA	Policy Number	Policy Number	String	25	A-Z & 0-9, spaces, dash and hyphen	N	POL-FO003
BB	Policy Start Date	Policy Start Date	String	10	[0-9] ddmmyyyy	N	15062023
BC	Policy End Date	Policy End Date	String	10	[0-9] ddmmyyyy	N	15062026
BD	Policy Term	Policy Term	Number	—	[0-9]	N	36
BE	Product Type	Product Type	String	20	A-Z, a-z, 0-9 and all special characters	N	WR91OJ
BF	Vehicle Budget	Vehicle Budget	Decimal	10	0-9 and decimal values	N	1500.50
BG	Spend to Date	Spend To Date	Decimal	10	0-9 and decimal values	N	250.75
BH	MOT Class	MOT Class	String	100	A-Z, a-z, 0-9 and all special characters	N	Class 4

Importing a File

Preparation

1. Create a new branch including the Jira task number in the branch name.
2. Delete all files in the importFiles folder.
3. Create a folder with the current sprint number.
4. Copy the file that needs to be imported to the created folder.
5. Update package.json:
   • Locate the line for validate:fleetOperationsCustomerContract.
   • Update --leaseId with the required lease ID.
   • Update --file with the relative path of the file.
6. Save package.json.

Local Validation

1. In a terminal, run npm run build.
2. Run the validation script: npm run validate:fleetOperationsCustomerContract.
3. If validation passes without errors, push the code.

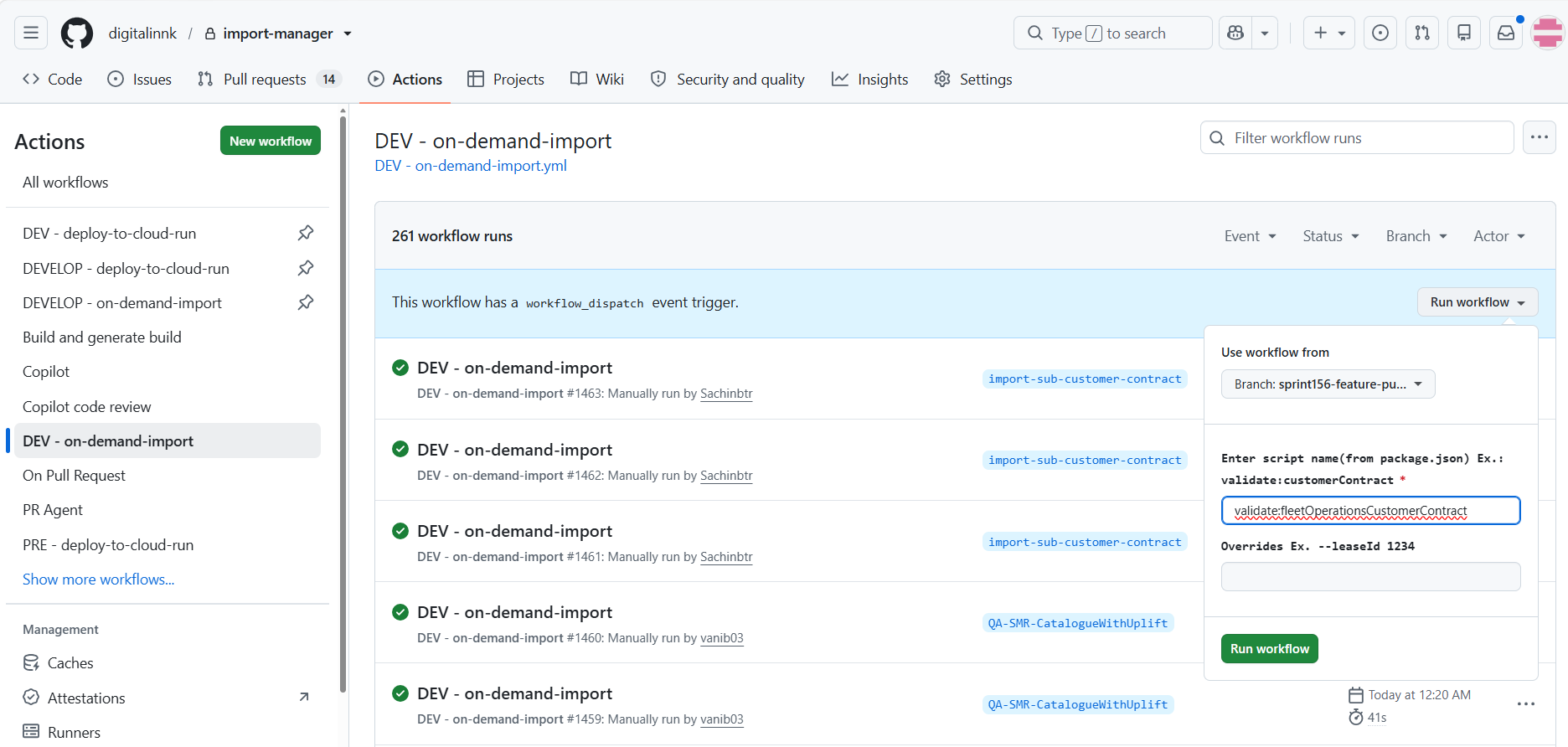

Workflow Validation

1. Navigate to Actions in the Import Manager.
2. Locate <Environment> - on-demand-import.
3. Select the branch created for this import.
4. Enter the script name as validate:fleetOperationsCustomerContract.
5. Leave the Overrides field empty.

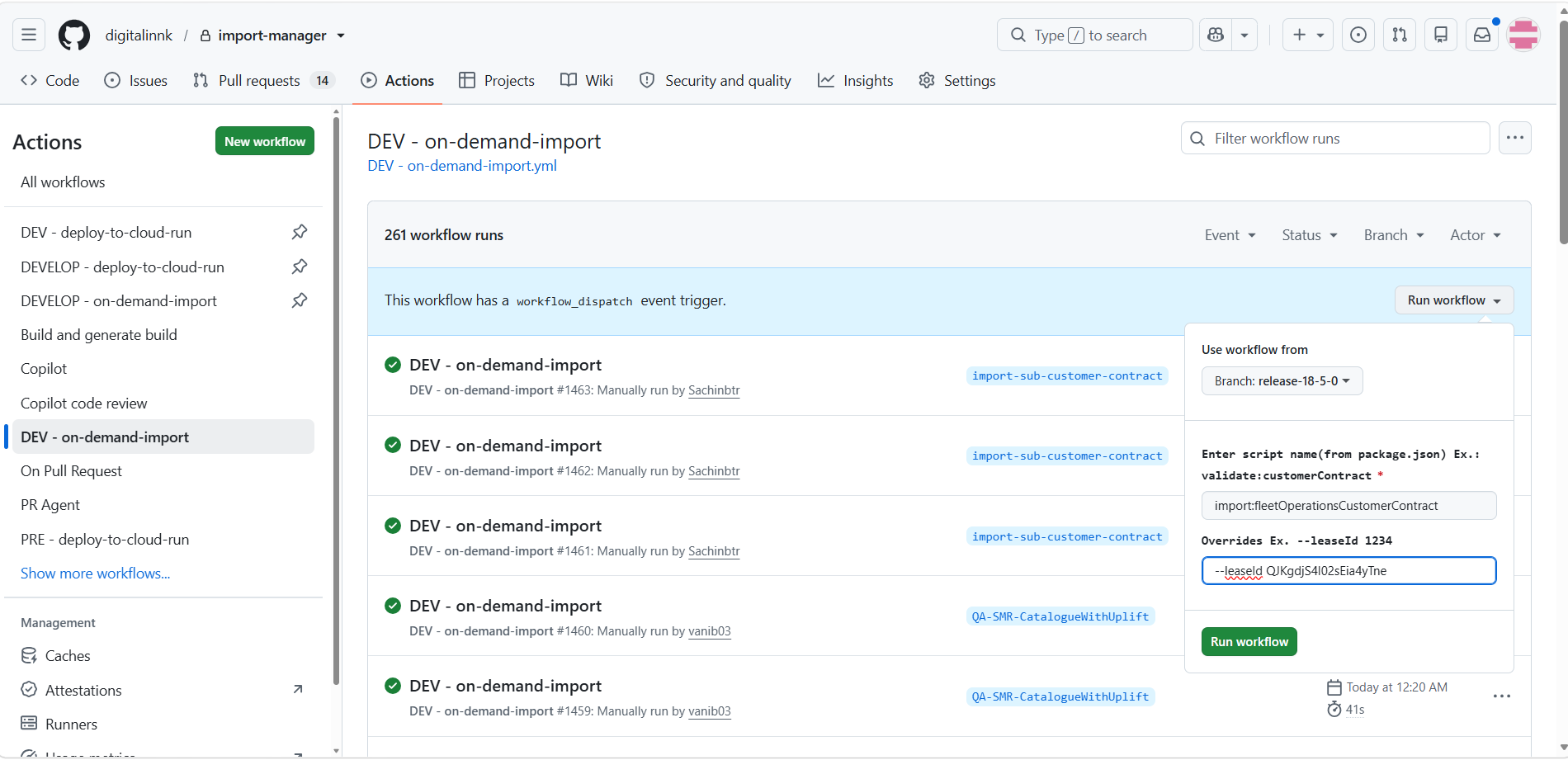

Importing the File

1. If the validation passes, proceed with the import.
2. Navigate to Actions in the Import Manager.
3. Locate <Environment> - on-demand-import.
4. Select the branch created for this import.
5. Enter the script name as import:fleetOperationsCustomerContract.
6. Enter --persist in the Overrides field (or --leaseId <leaseId> --persist when a specific lease is required).

Importing the File via Cloud Run

Validation scheduler setup

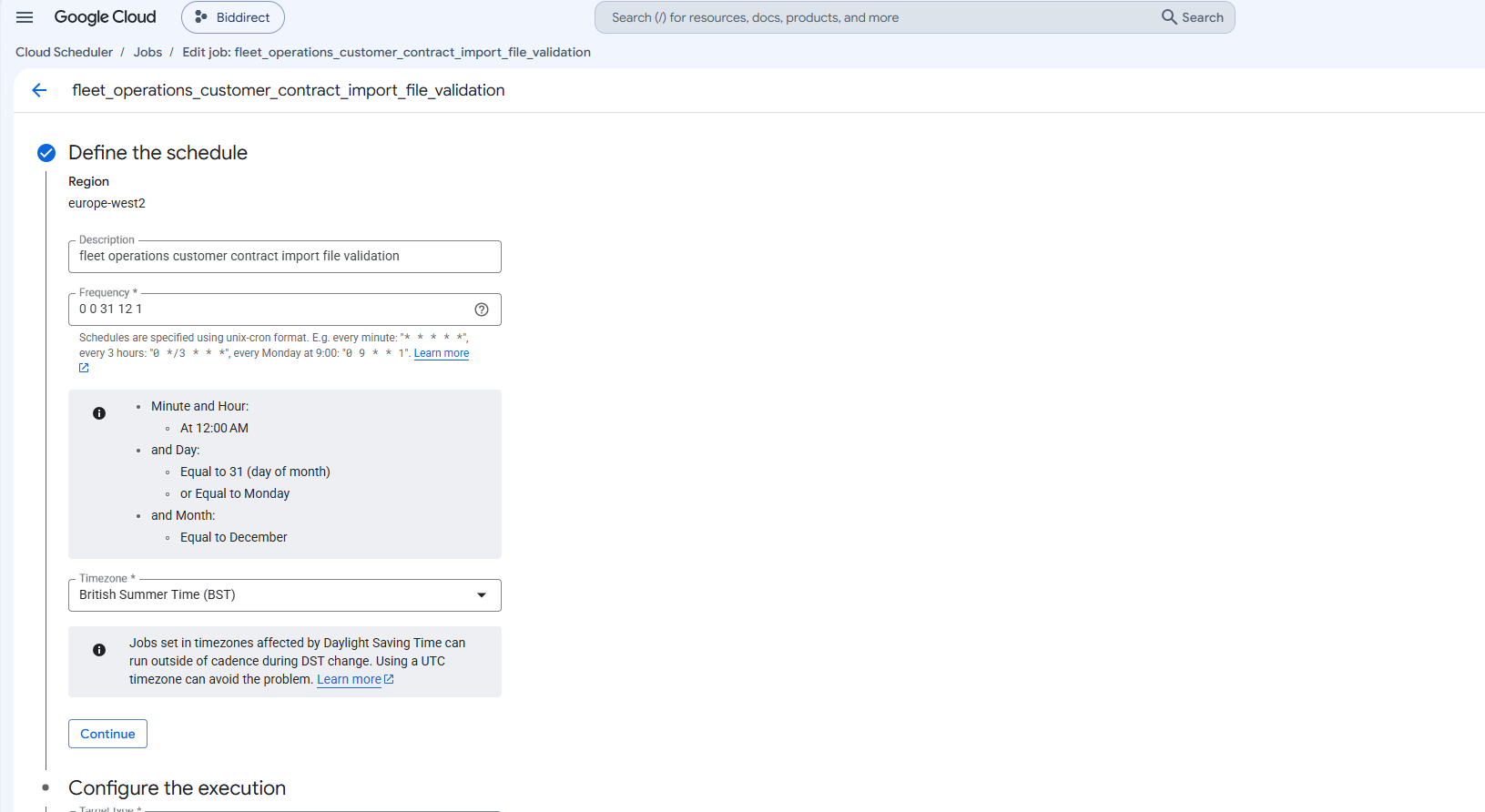

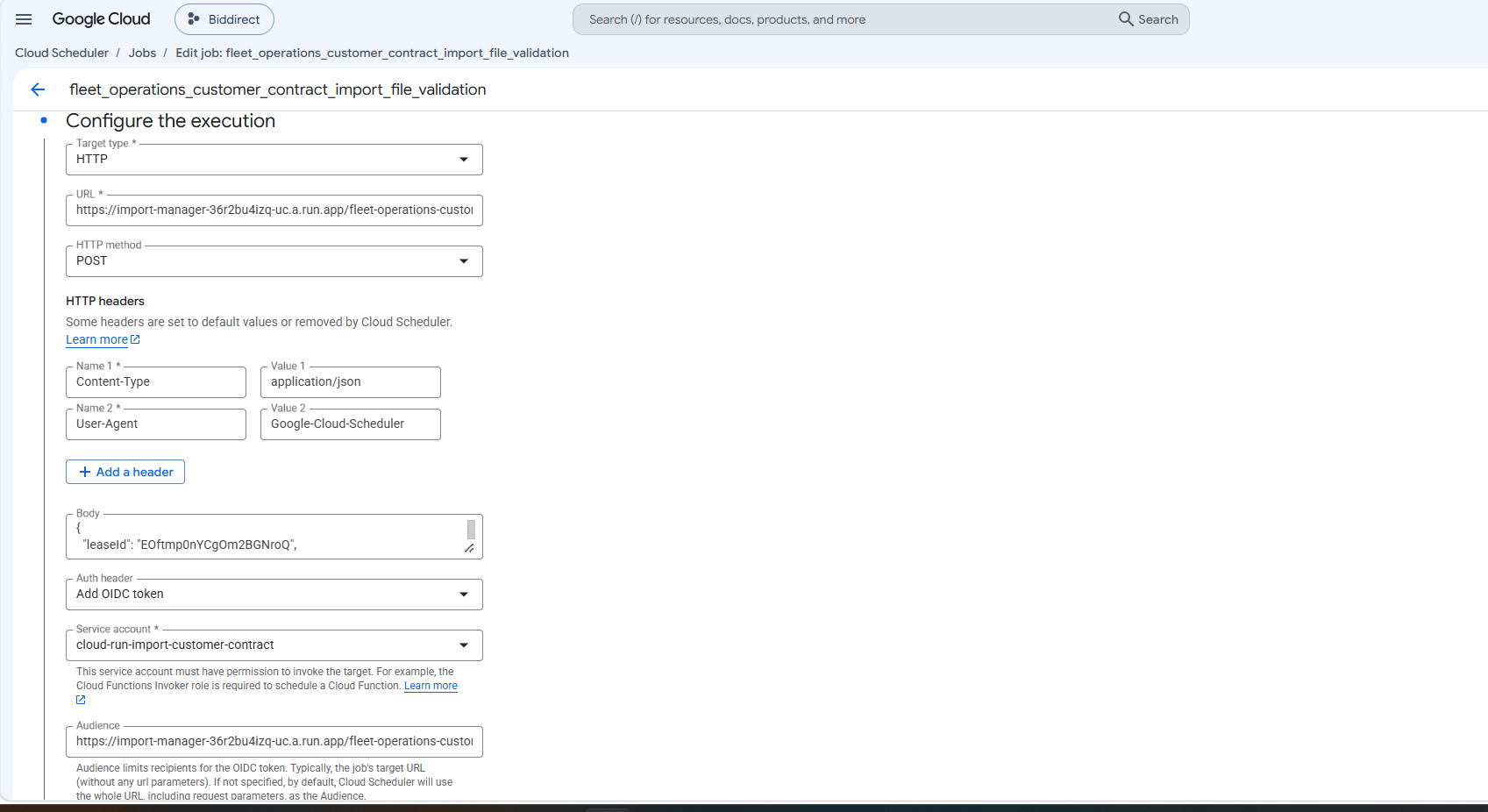

1. Go to Cloud Scheduler and select CREATE JOB.
2. Configure the Cloud Scheduler with the following parameters:

• Name: fleet_operations_customer_contract_import_file_validation
• Region: europe-west2
• Frequency: 0 0 31 12 1
• Time Zone: British Summer Time (BST)
• Target Type: HTTP
• URL: https://import-manager-36r2bu4izq-uc.a.run.app/fleet-operations-customer-contract
• HTTP Method: POST
• Auth Header: Select OIDC Token
• Service Account: cloud-run-import-customer-contract
• Body: Include the following JSON object:

{
  "leaseId": "QJKgdjS4I02sEia4yTne",
  "leaseCompanyName": "Next Fleet Services",
  "persist": "false",
  "bucket": "biddirect-2.appspot.com",
  "appDirectory": "/usr/src/app/",
  "importPath": "imports/fileDrop/",
  "importFileDropPath": "imports/fileDrop/",
  "importFileName": "fleetOperationsCustomerContract.csv",
  "email": "mailgun@digitalinnk.com",
  "fatalErrorEmailToAddress": "mailgun@digitalinnk.com",
  "schema": "FLEET_OPERATIONS_CUSTOMER_CONTRACT",
  "locale": "en_GB"
}

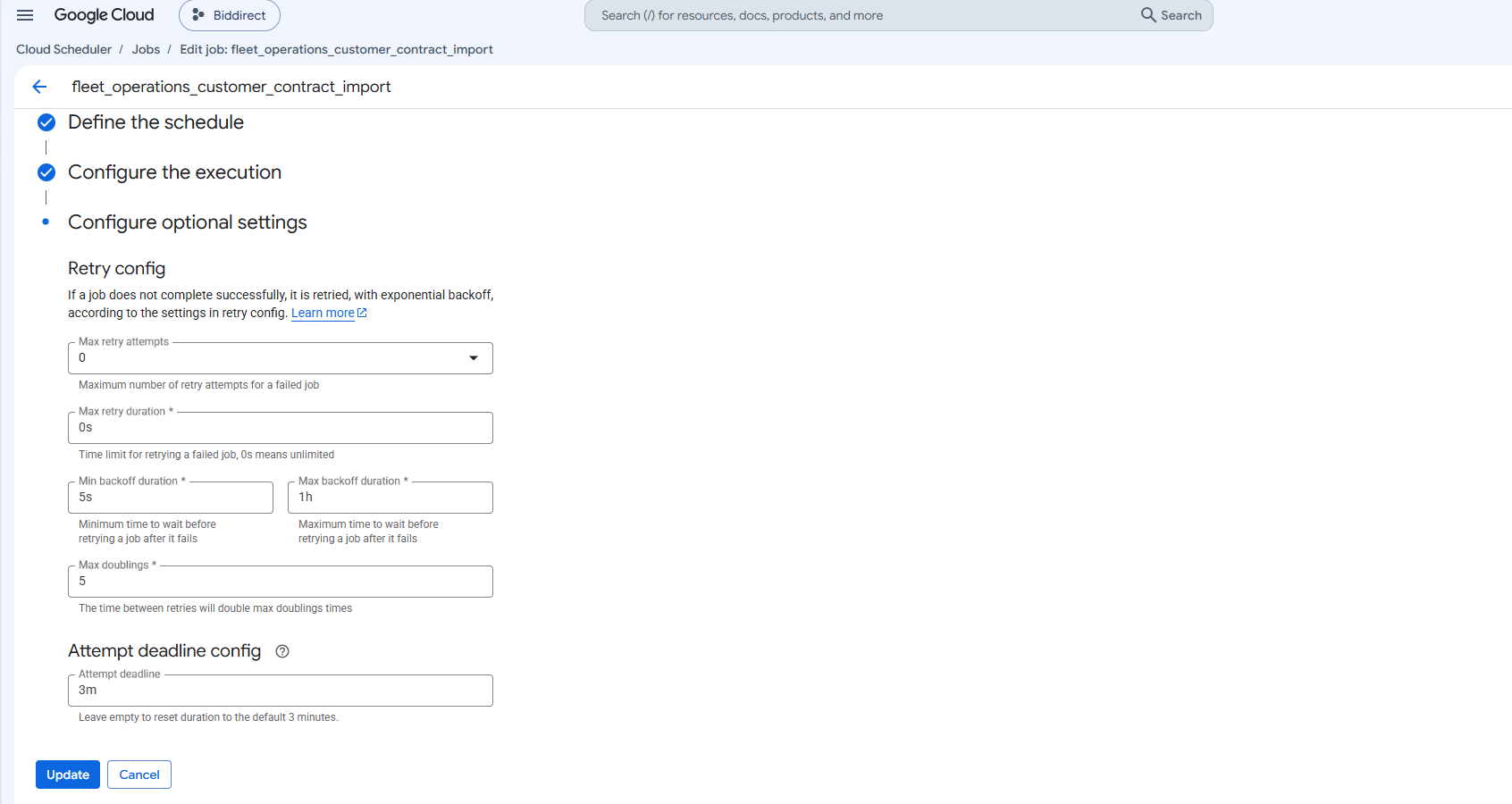

Import scheduler setup

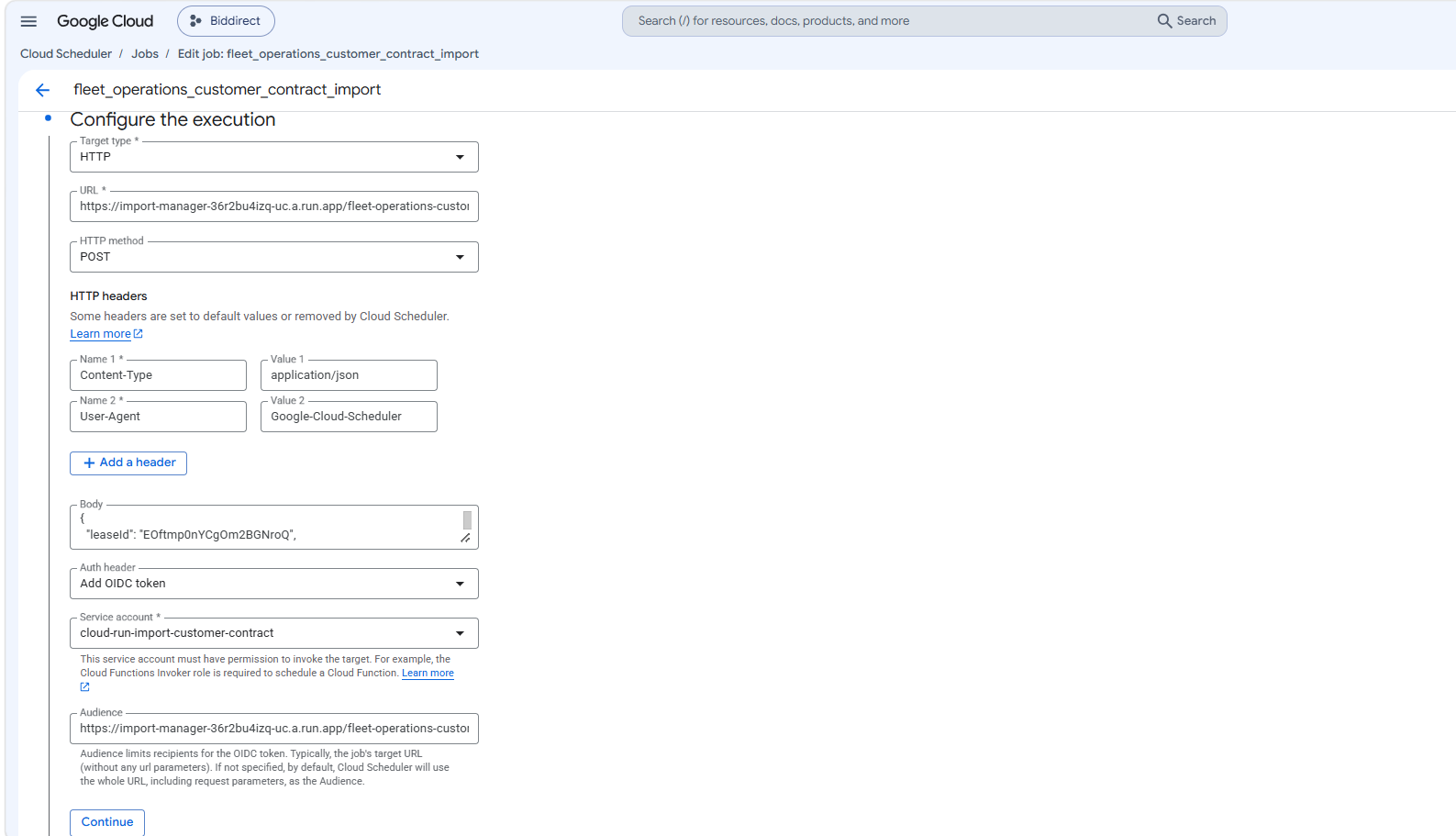

1. Go to Cloud Scheduler and select CREATE JOB.
2. Configure the Cloud Scheduler with the following parameters:

• Name: fleet_operations_customer_contract_import
• Region: europe-west2
• Frequency: 0 0 31 12 1
• Time Zone: GMT London
• Target Type: HTTP
• URL: https://import-manager-36r2bu4izq-uc.a.run.app/fleet-operations-customer-contract
• HTTP Method: POST
• Auth Header: Select OIDC Token
• Service Account: cloud-run-import-customer-contract
• Body: Include the following JSON object:

{
  "leaseId": "QJKgdjS4I02sEia4yTne",
  "leaseCompanyName": "Next Fleet Services",
  "persist": "true",
  "bucket": "biddirect-2.appspot.com",
  "appDirectory": "/usr/src/app/",
  "importPath": "imports/fileDrop/",
  "importFileDropPath": "imports/fileDrop/",
  "importFileName": "fleetOperationsCustomerContract.csv",
  "email": "mailgun@digitalinnk.com",
  "fatalErrorEmailToAddress": "mailgun@digitalinnk.com",
  "schema": "FLEET_OPERATIONS_CUSTOMER_CONTRACT",
  "locale": "en_GB"
}

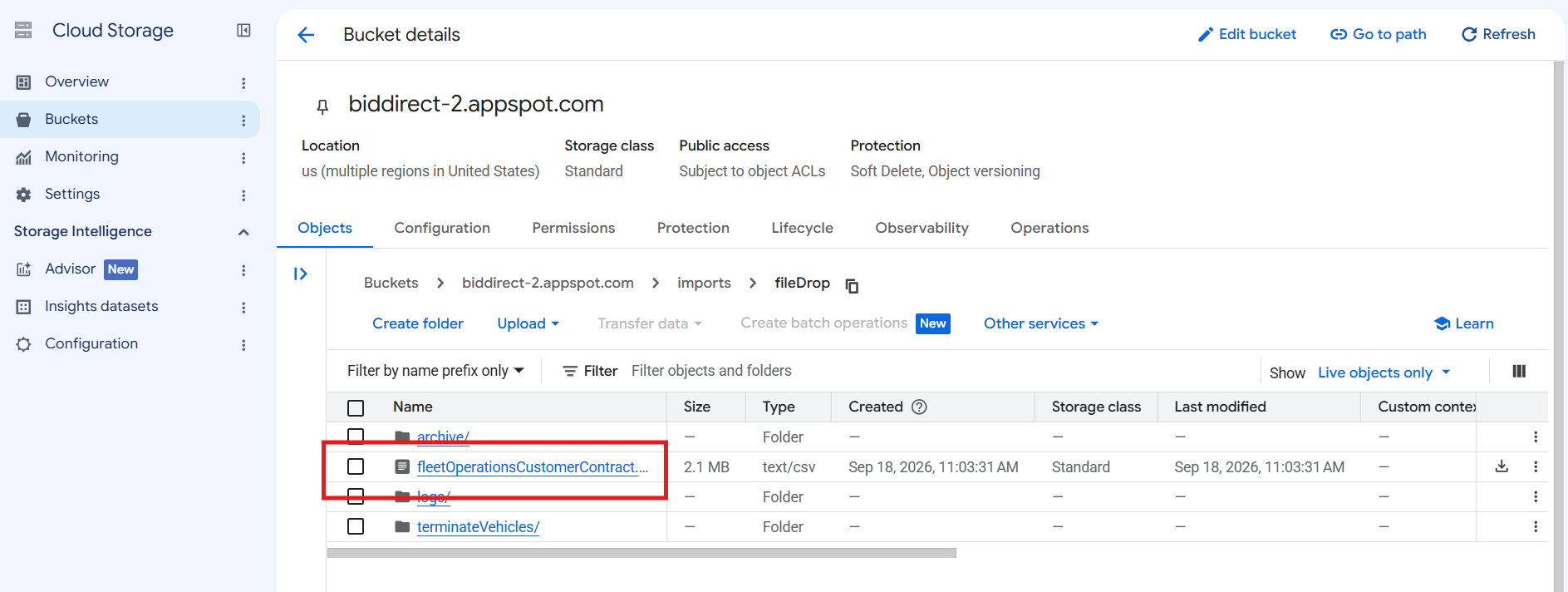

Preparation

1. Bucket Name: biddirect-2.appspot.com (bucket name may vary across environments).
2. File Path: Place the file in imports/fileDrop within the bucket, using the CSV file named fleetOperationsCustomerContract.csv.

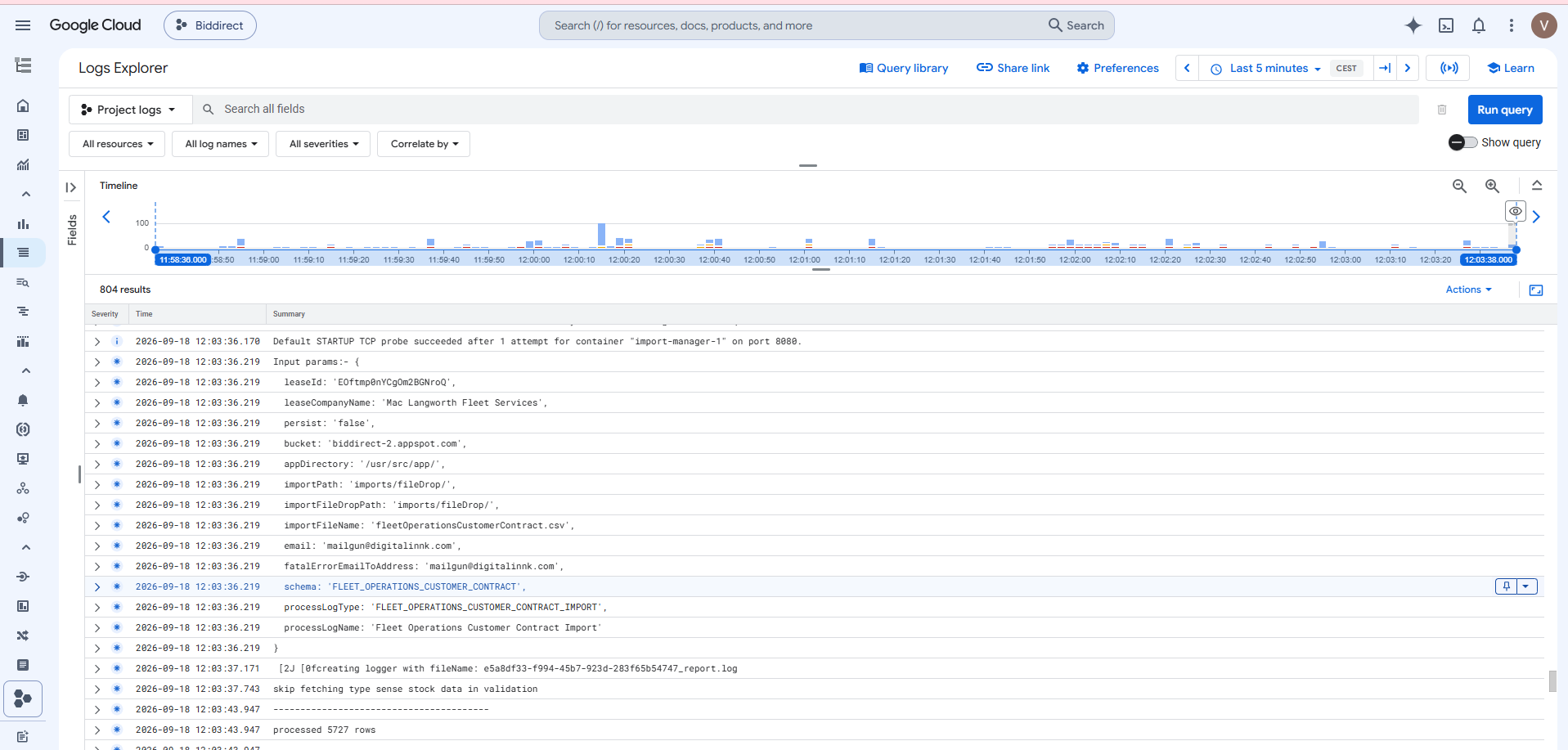

Running validation

1. Go to Cloud Scheduler.

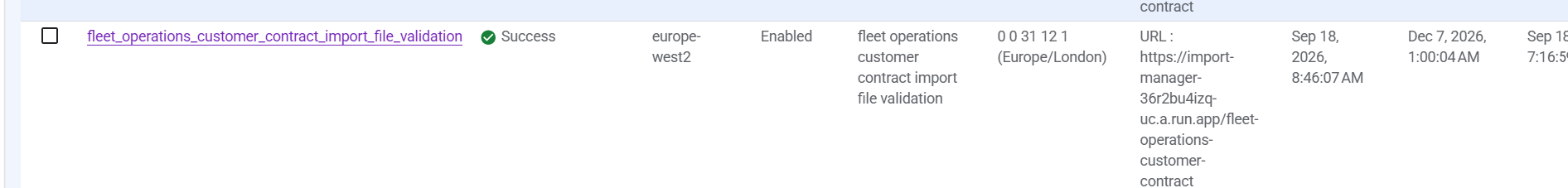

2. Run the fleet_operations_customer_contract_import_file_validation job (job name may vary in different environments).

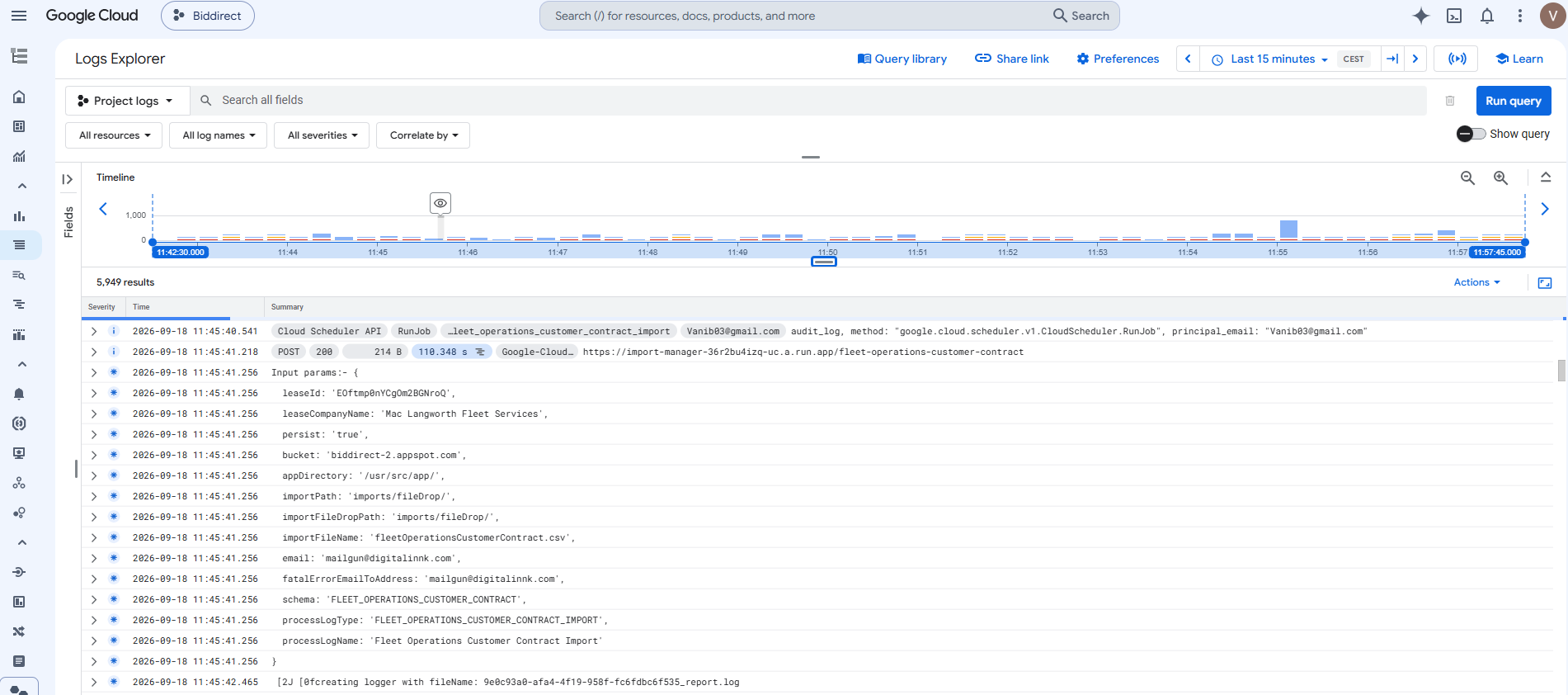

Running import

1. Go to Cloud Scheduler.

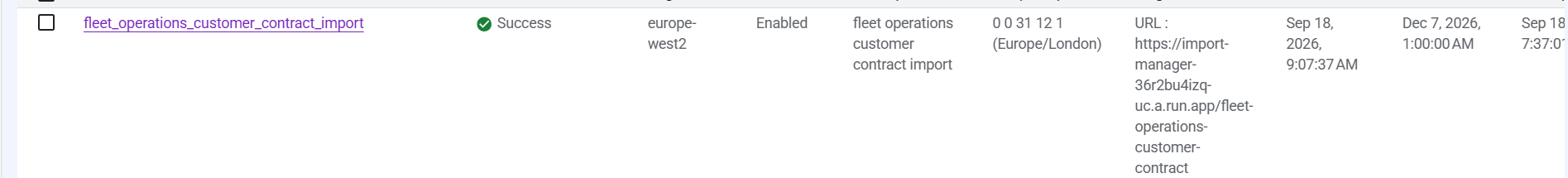

2. Run the fleet_operations_customer_contract_import job (job name may vary in different environments).

Testing

1. After running the import, verify that Fleet Operations vehicles have been successfully imported by navigating to the ViSN customer platform.
2. Go to Vehicle Record and search for the imported vehicle to confirm the import process was successful.
3. Where Customer Account Number is provided, verify the vehicle is allocated to the matching sub-customer, or that a new sub-customer has been created.
