Firestore to BigQuery Validation Workflow

This document provides a step-by-step guide to run the GitHub Actions workflow for validating Firestore data against BigQuery schema and data.

📌 Overview​

The GitHub Actions workflow titled:

<env> – Firestore to BigQuery Enquiry Validation (Schema/Data)

is used to:

  • ✅ Validate Firestore data against BigQuery schema.
  • ✅ Validate Firestore data against BigQuery data.

🔁 The same workflow handles both schema and data validation. You can select the mode using the validationType input.

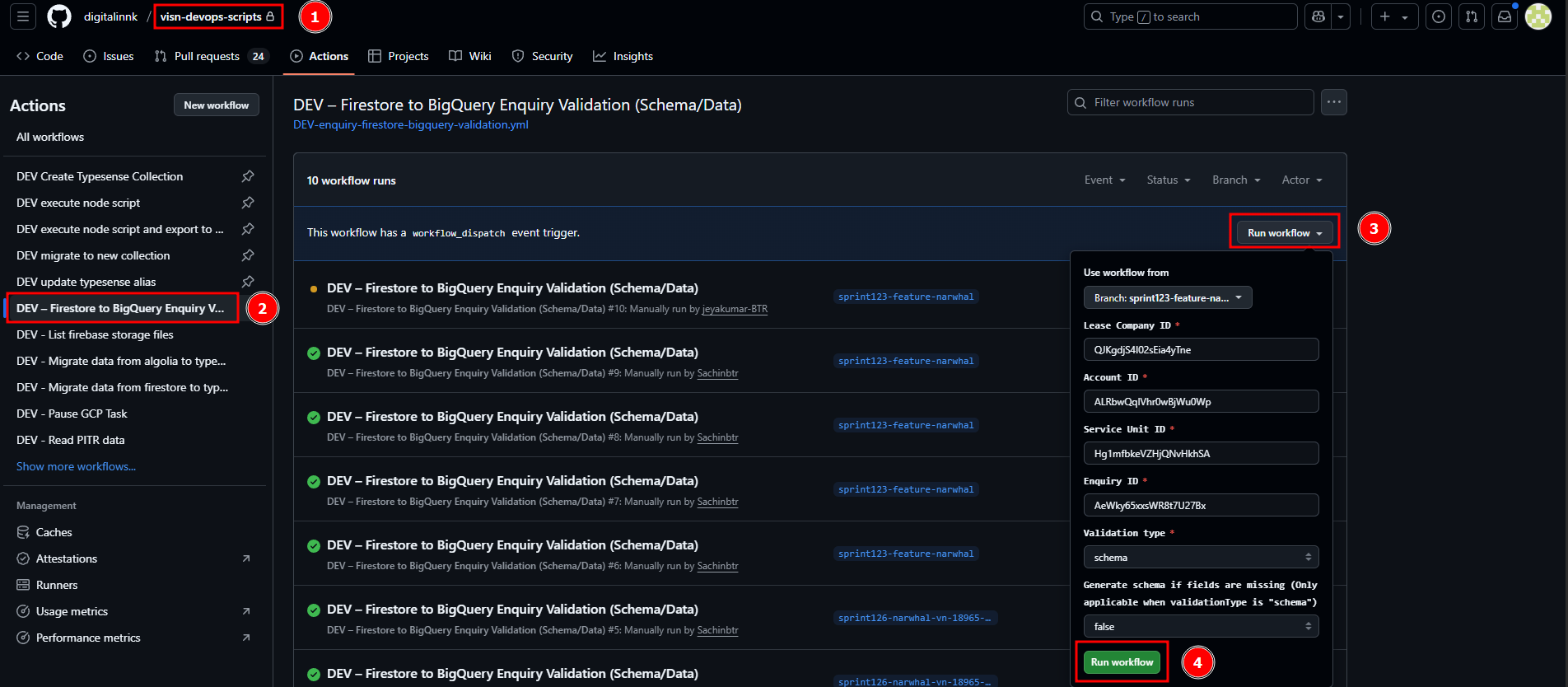

🧭 Navigate & Launch the Workflow​

1. Open the GitHub Repository​

Go to the visn-devops-scripts repository.

2. Access the Workflow​

  • Click the Actions tab.
  • Select the workflow named:
    <env> – Firestore to BigQuery Enquiry Validation (Schema/Data)

3. Run the Workflow​

  • Click the Run workflow button (top-right).
  • Select the target branch (e.g., sprint123-feature-narwhal).
  • A form will appear with input fields.

🧾 Required Inputs​

The form requires the following parameters:

ParameterRequiredDescription
Lease Company ID✅Firestore document ID for the leasing company.
Account ID✅The account ID.
Service Unit ID✅ID of the service unit related to the enquiry.
Enquiry ID✅Firestore document ID of the enquiry to validate.
Validation Type✅Select either schema or data based on what you want to validate.
Generate Schema if Fields Missing⚠️ Only for schemaWhen set to true, the script auto-generates missing fields BigQuery schema. If false, it only reports them.

⚠️ The "Generate Schema" field only appears when validationType is set to schema.

✅ Validation Modes​

🔍 1. Schema Validation (validationType = schema)​

This mode checks whether the Firestore document fields match the BigQuery schema.

You will be prompted with:

Generate schema if fields are missing?

Choose:

  • true → The workflow will automatically generate the missing fields schema.
  • false → The workflow will only report missing fields without altering the schema.

🔍 2. Data Validation (validationType = data)​

This mode checks that the values in Firestore documents exist in BigQuery and match exactly. It detects:

  • Missing documents
  • Mismatched values

▶️ Executing the Workflow​

Once all input fields are completed:

  1. Click Run workflow again to start execution.
  2. GitHub Actions will queue and run the job with your selected parameters.

📊 Reviewing the Results​

1. Open the Workflow Run​

  • Go to the Actions tab.
  • Select the recent run of the workflow under your branch and environment.

2. Locate the Validation Step​

Find the step titled: Run Firestore Validator based on selected validation type

3. Analyze the Logs​

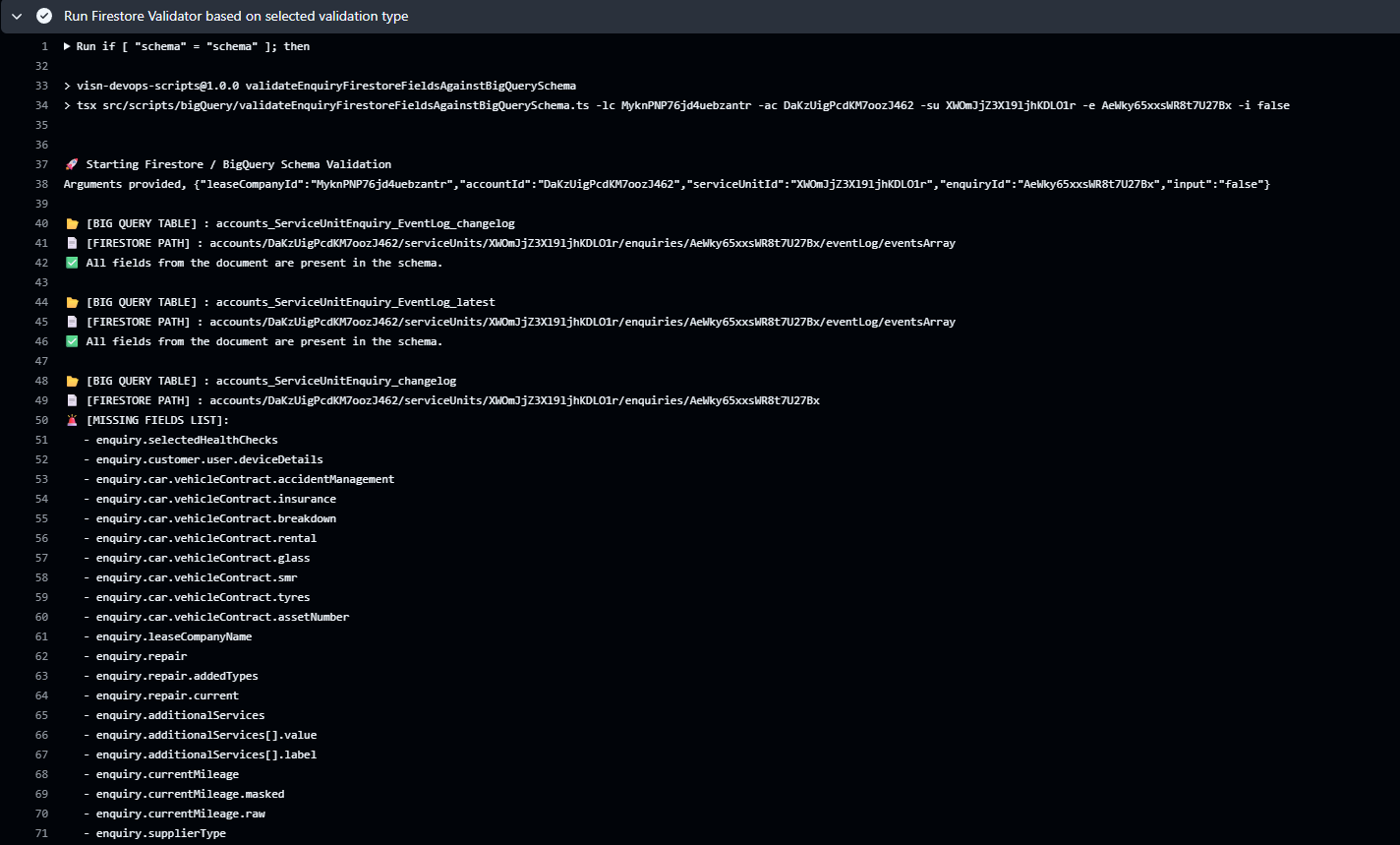

If validationType = schema:​

  • Logs will show:
    • Logs will list any missing fields.
    • You’ll see if fields were auto-generated (if enabled).

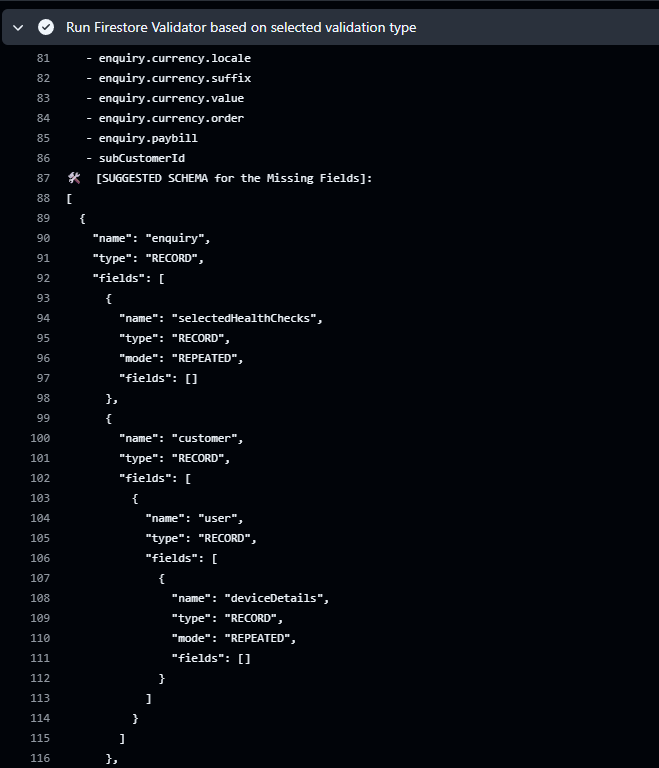

Auto-generated Schema:

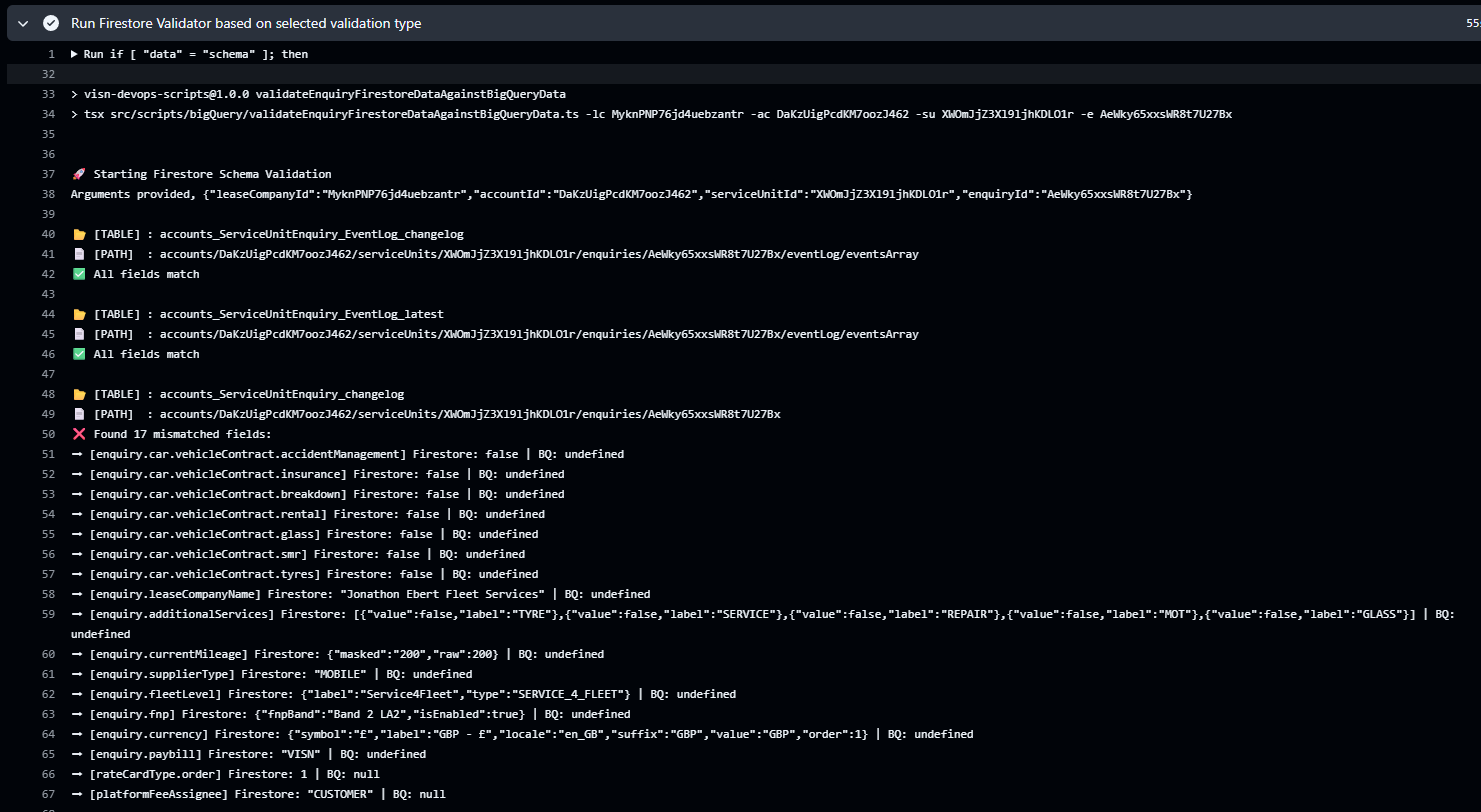

If validationType = data:​

  • Logs will show:

    • Fields present in Firestore but missing in BigQuery.
    • Mismatched values between Firestore and BigQuery rows.

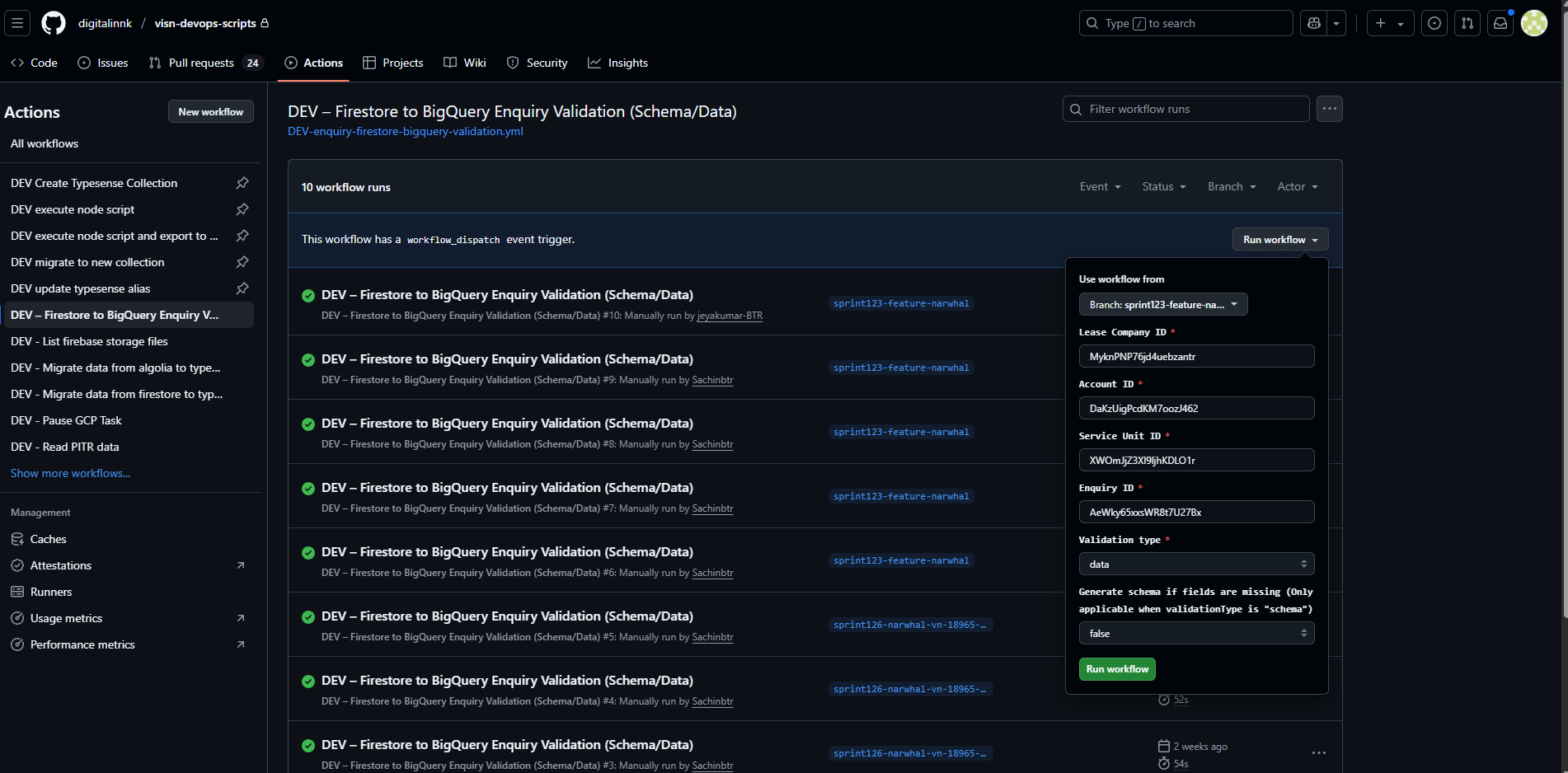

🖼️ UI Reference​

Below is an example of how the workflow input form appears in GitHub Actions:

Run Firestore to BigQuery Validation Workflow

Features visible in the UI:

  • Workflow name with environment: DEV – Firestore to BigQuery Enquiry Validation (Schema/Data)
  • Manual branch selector (e.g., sprint123-feature-narwhal)
  • Input fields for:
    • Lease Company ID
    • Account ID
    • Service Unit ID
    • Enquiry ID
    • Validation Type
    • Schema generation toggle (for schema validation)

💡 Tips​

  • Always verify you're selecting the correct environment and branch before running.

📘 Notes​

  • <env> refers to your environment: DEV, DEMO, or PROD.
  • Only users with appropriate permissions can trigger workflows and view logs.
  • Schema generation is not available in data mode.
Status: Approved
Category: Protected
Authored By: Jeyakumar Arunagiri on July 14, 2025
